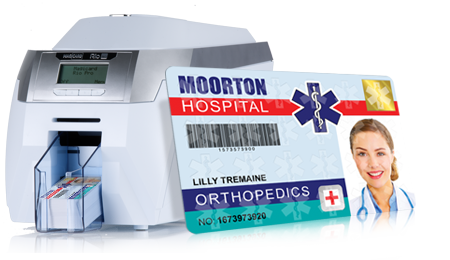

Magicard Rio Pro Printer

RIO PRO

Key features

- Standard HoloKote with option to customize to an individual design

- Edge-to-edge printing

- Full range of encoding options: magnetic stripe, barcode, contact and contactless

- 100-card hopper & 70-card stacker for batch printing plus hand-feed slot

- Field upgradable from single to double-sided printing

- Superior print quality enabled by ICC profiles

- Easy to use four line display

- Built in USB and Ethernet connection with Windows 8, 7, XP and Vista (32/64 bit) compatibility

Specification

Specification Details
Visual security Visual security A HoloKote security watermark can be printed across the card surface. When used with HoloPatch® cards, one area of the HoloKote watermark is highlighted as a high visibility security seal. A choice of 4 standard HoloKote designs and 1 standard HoloKote Flex design are selectable from the printer driver. For added security, the Custom HoloKote option (ordered separately) enables customisation of the watermark to an individual logo or security design.
Print mode Color dye sublimation and monochrome thermal transfer
Printer interfaces USB and Ethernet both fitted as standard.
Print speed *Colour standard mode: 31 seconds, *Colour fast mode: 23 seconds, *Monochrome resin: 6 seconds (*single-sided card).
Card capacity 100-card feeder, 70-card stacker.
Software drivers MacOSX, Windows 2000 Professional (SP4), XP, Vista, Windows 7, Windows 8.1, Windows Server 2003 R2 SP2, Server 2008, Server 2012 (Windows 8 Server) Note: 32bit & 64bit Compatibility.
Printer size 470mm L x 220mm W x 250mm H (18.5" L x 8.6" W x 9.8" H) including feeder and stacker.
Printer weight 4.9kg (10.8 lbs).
Card thickness 0.51mm to 1.27mm (0.020” to 0.050”).
Card types ISO PVC blank, magnetic stripe, self-adhesive, printable type proximity and smart cards, HoloPatch cards.
Card dimensions ISO standard CR80 85.6mm x 54mm or 3.375" x 2.125", and CR79 83.9mm x 51mm or 3.303" x 2.051".
Environment Sheltered office environment 10°C to 30°C (50°F to 85°F).
Power source External power supply 100-240V 50-60Hz autoranging.
