Smartcard Systems Limited Matica S3300e embosser system

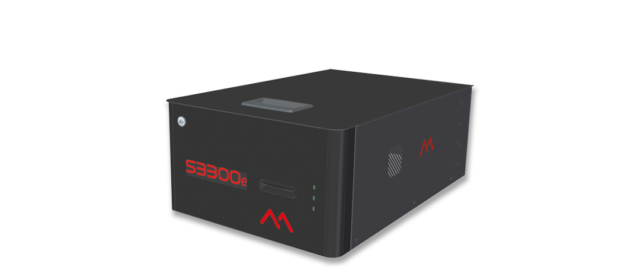

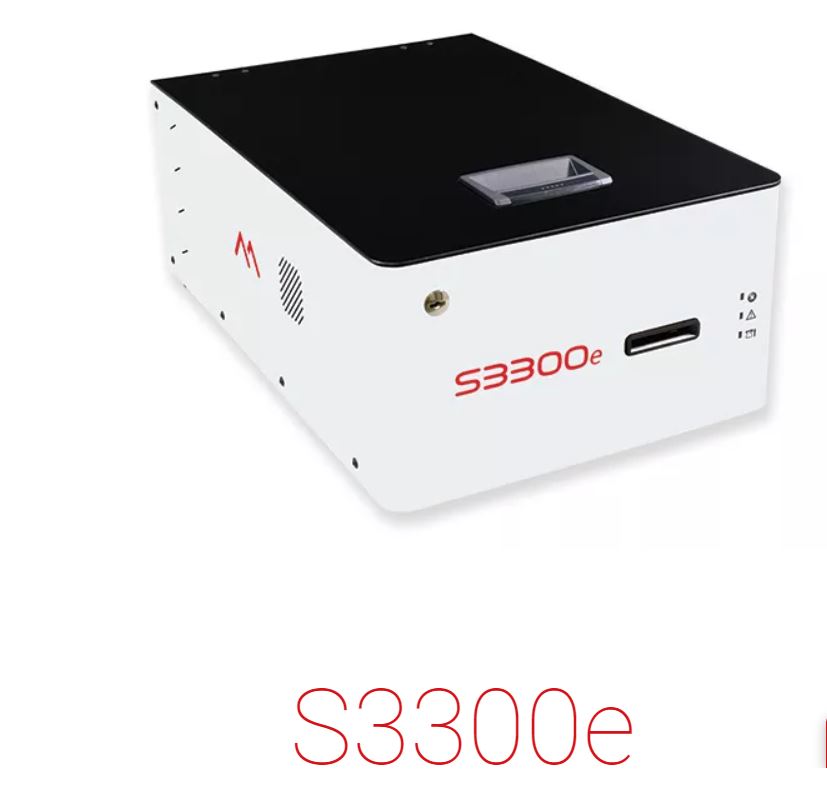

Matica S3300e Embosser

Matica S3300e compact machine for financial sector instant issuance

The S3300e is a financial desktop embosser based upon Matica’s reliable and heavy-duty embossing technology used in their central issuance systems. The newly designed drum and tipping module enables the S3300e to instantly issue embossed credit pre-printed cards at branch level. As pre-printed cards are not kept inside the embosser the system’s security is optimized allowing banks and financial institutions to issue credit cards in a secure environment without hitches.

Emboss, indent & tipping: all in one

Regarded as the most compact, easy-to-use financial embossing desktop system on the market, the S3300e includes and state-of-the-art, 72-character drum for from-side embossing and rear indent. The new tipper module, based on cassette consumable for easy operation, is available in four colors (white, black, gold and silver).

The system fits perfectly into any environment and can be easily integrated into a secure vault for restricted access. The front manual feeder ensures a smooth operation since it avoids pre-printed cards appearing in the input hopper minimizing the risk of stolen card stock which has been particularly welcomed at branch level.

MasterCard® and VISA® compliant and includes ‘Matica Security Pack’

The S3330e also includes the ‘Matica Security Pack’ for financial issuance, which is a comprehensive set of security features that fulfils specific requirements for financial card personalization. It fully complies with international regulations that govern physical and logical security in the financial issuance industry and can be relied upon to safeguard any business that seeks to refine and develop their systems, their customer service, cost savings and their overall reputation.

Specifications︰

Technical Specifications:

Layout Personalization

Method - Embossing, Indenting, Tipping

Speed - Less than one minute per card (mag encoding, embossing, tipper)

Encoding:

Encoding (optional)- Contactless chip, Contact chip,

Magnetic stripe Cards' encoding (included)

Format & materials - ISO CR80, PET, PVC

Connectivity:

Connectivity - USB

Platform:

Printer dimensions (L x W x H) - 400 x 600 x 240 mm

Advantages︰

Key Strengths:

50 - 100 cards per hour

Compact desktop design easily fits anywhere

Electronics key locks:

Electronics key locks and security key

Embossing and tipping

Visa and Mastercard security compliance

When volume, cost and size are factors, Matica offers compact and reliable machines with the option of magnetic stripe encoding and chip personalization. These desktop systems meet the needs of medium and small service centers for instant issuance card projects.

Applications and target markets

These machines are ideal solutions for the following applications:

Credit & debit cards
Fidelity cards
Patient card Identification
Membership cards
Loyalty cards

Target markets:

Clubs
Healthcare
Hotels
Libraries
Cultural associations
Education
Public authority
Hospitality
Service bureaux
